Manufacturer of

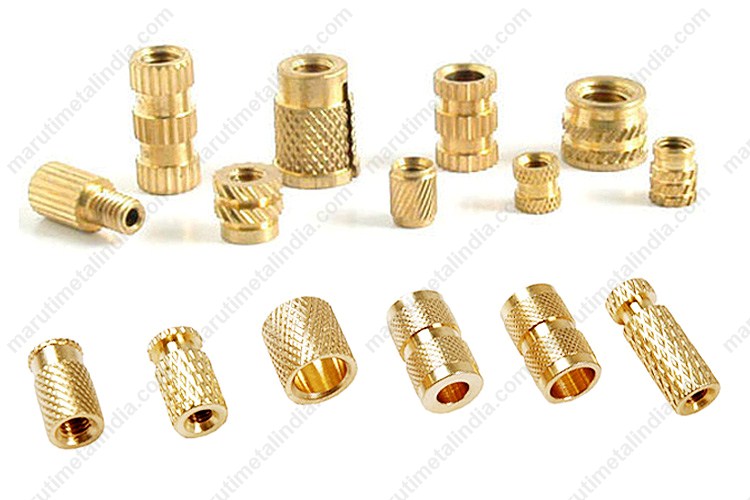

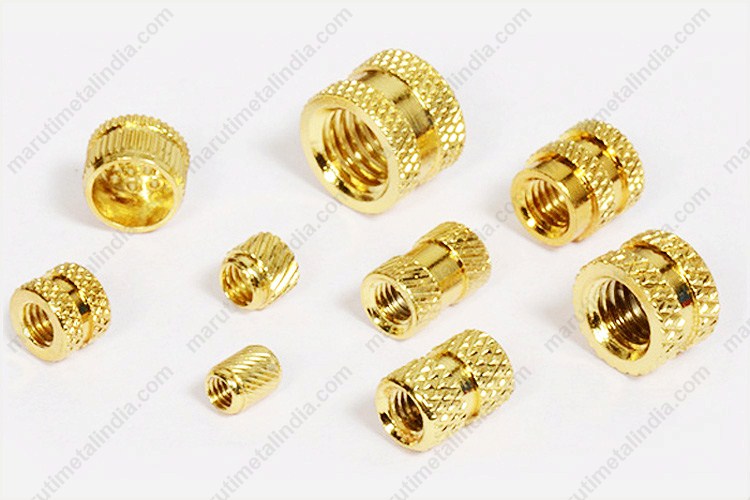

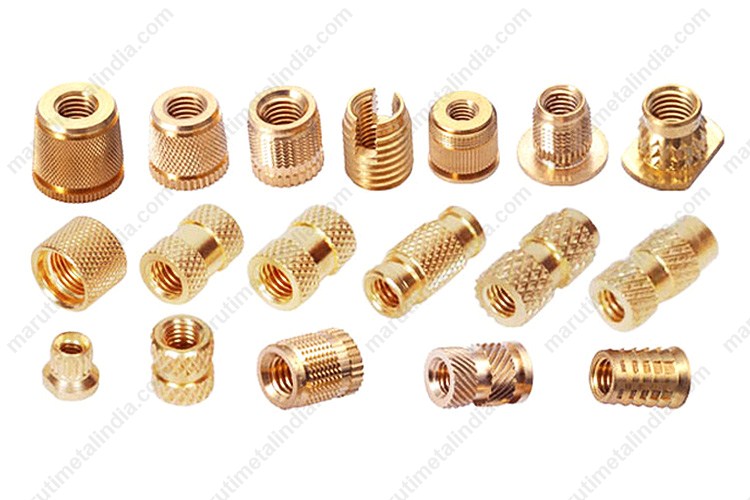

Brass Moulding Inserts
Brass Threaded Inserts, Brass Knurled Inserts, Brass Inserts for Plastics, Brass Inserts for Wood and Clipboard, Ultrasonic range of Brass Inserts, Heatbit range of Brass Inserts, Press-in Inserts with and without collars, Moulded-in Inserts.
Special Features of Brass Inserts
- Threads as per International Go & Not Go Standards.
- Deep Groove for maximum Pull Out Resistance.
- Inner Diameter (I/D) after Threads with very close tolerance to prevent unnecessary flush to enter into the brass inserts.
- Knurling Available: » Diamond » Straight » Unidirectional » Both blind and through brass inserts are available with no minimum Qty.
Also Available
- Brass Round Knurled Inserts
- Brass Hexagonal Inserts
- Brass Square Inserts
Material
- Free Cutting Brass IS 319 Type (I) or BS 249 Type (I) or High Grade
- Any Special Brass Material Composition as per customers requirement
- Brass as per RoHS Directive.
Threads
- ISO Metric (MM Threads)
- BA, BSW (Inches), UNC, UNF or
- Any as per custom design
Length / Size
Begins from M2 or equivalent threads and up to any size as per custom design or requirement
Finish And Coating
Natural, Nickle Plated, Tin Plated brass inserts or any coating as per customer specification.
Any kind of special Brass Threaded Moulding Inserts can be developed and supplied exactly as per customer specification
